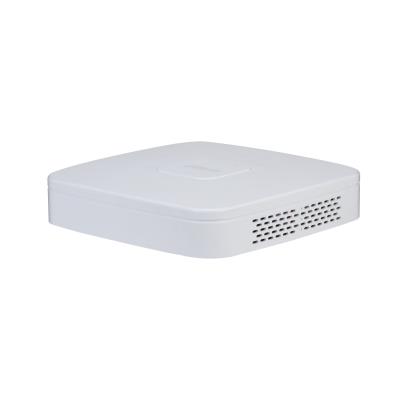

Dahua Technology Lite NVR2108-4KS3. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 960p, 1080p. Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports.... Rack capacity: 1U, Product colour: Black, Certification: CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN.... Power consumption (max): 25.5 W, Power consumption (typical): 10 W, Output current: 1.22 A
Tehniskā specifikācija
Video ievades kanāli
4 kanāli
Video ierakstīšanas režīmi
1080p/720p/960p
Atbalstītās izšķirtspējas
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Maksimālā izšķirtspēja
3840 x 2160 pikseļi
Video kustības uztveršana
Jā
Atbalstītie audio formāti
G.711 µ-law/G.711 A-law/G.726/PCM
Atbalstītie video formāti
H.264/H.264+/H.265/H.265+
Atbalstāmie attēlu formāti
MJPEG
Nodrošināta operētājsistēma
Integrētais LINUX
Ievades joslas platums
80 Mbit/s
Izvades joslas platums
60 Mbit/s
Maksimālā uzglabāšanas ietilpība
20 TB
Cietā diska interfeiss
SATA
Ethernet LAN (RJ-45) pieslēgvietu skaits
1
Ethernet LAN datu pārsūtīšanas ātrums
10/100 Mbit/s
Power over Ethernet (PoE)
Jā
Power over Ethernet (PoE) pieslēgvietu skaits
8
HDMI pieslēgvietu skaits
1
USB 2.0 pieslēgvietu skaits
2
VGA (D-Sub) izvades pieslēgvietas
1
eSATA pieslēgvietu daudzums
1
Tīkla standarts
IEEE 802.3af/IEEE 802.3at
Atbalstāmie tīkla protokoli
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
Sertifikācija
CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Strāvas patēriņš (maks)
25.5 W
Kopējais Power over Ethernet (PoE) budžets
72 W
Atbalstītās mobilās operētājsistēmas
Android/iOS
Pārlūkprogrammas atbalstīts
Chrome; IE; Safari; Edge; Firefox
Darbības temperatūras amplitūda (T-T)
-10 - 55 °C
Darbības relatīvā mitruma amplitūda
10 - 93 %
Uzglabāšanas temperatūras amplitūda (T-T)
-20 - 60 °C
Iepakojuma platums
374 mm
Iepakojuma dziļums
119 mm
Iepakojuma augstums
311 mm
ELKO Verified Logistics Data
Preces neto svars
0.45 kg
ELKO Internal Logistics Data
Shipping Box Weight
11.4 kg
Shipping Box Height
56 cm
The NVR2000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. This NVR is both costeffective and easy-to-install, making it ideal for a wide range of applications such as villas, shops and other small and medium-sized scenes.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and ilter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Perimeter Protection by Camera
Automatically ilters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
- Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats
- Max. decoding capability: 6 × 1080p@30 fps
- Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth
- Supports IP cameras with a resolution up to 12 MP
- AI by Recorder supports 4-channel SMD
- AI by Camera supports perimeter protection and SMD
- Supports one-click arming and disarming
