Axis P1245 Mk II. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Covert. Minimum illumination: 0.2 lx, Lens viewing angle, horizontal: 111°, Lens viewing angle, vertical: 61°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 2.8 mm, Closest focusing distance: 0.2 m
Tehniskā specifikācija
Housing material
Plastic/Steel
International Protection (IP) code
IPX3
Product colour
Black/White
Connectivity technology
Wired
Placement supported
Indoor
Wide Dynamic Range (WDR)
Yes
Camera shutter speed
1/6500 - 1/5 s
Lens viewing angle, horizontal
111 °
Lens viewing angle, vertical
61 °
Minimum illumination
0.2 lx
Optical sensor size
1/2.9 "
Closest focusing distance
0.2 m
Fixed focal length
2.8 mm
Maximum aperture number
2
Bit rate control
Variable Bit Rate (VBR)
Image quality adjustment
Brightness/Contrast/Saturation/Sharpness
Maximum resolution
1920 x 1080 pixels
Supported graphics resolutions
1024 x 640/1024 x 768 (XGA)/1920 x 1080 (HD 1080)/480 x 360/640 x 360
Video formats supported
AVC/H.264/HEVC/M-JPEG/MPEG4
Signal-to-Noise Ratio (SNR)
55 dB
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3af/IEEE 802.3at
Streaming method
Multicast
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, A
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)/MicroSDHC/MicroSDXC
Ethernet LAN (RJ-45) ports
1
Alert notification type
E-mail
Human and vehicle targets classification
Yes
Intelligent Video Surveillance (IVS) system features
Face detection/Human detection/Vehicle detection
Security algorithms
802.1x RADIUS/EAP-TLS/HTTPS/PEAP/TLS
Video motion detection
Yes
Behavior analysis
Line crossing detection,Scene change detection
Power consumption (max)
4.1 W
Power consumption (typical)
3.4 W
Operating relative humidity (H-H)
10 - 85 %
Operating temperature (T-T)
-20 - 45 °C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-40 - 65 °C
Compliance certificates
RoHS

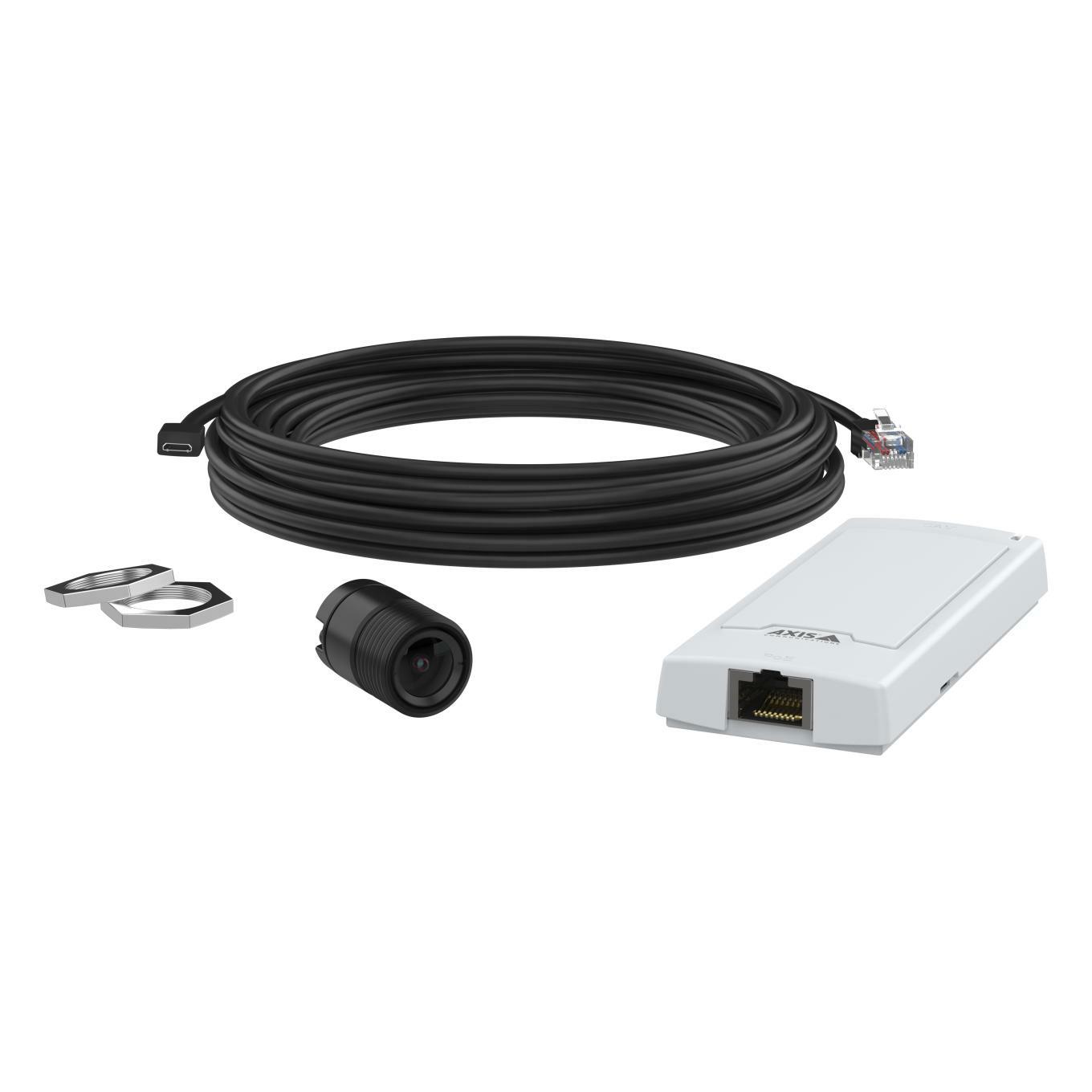

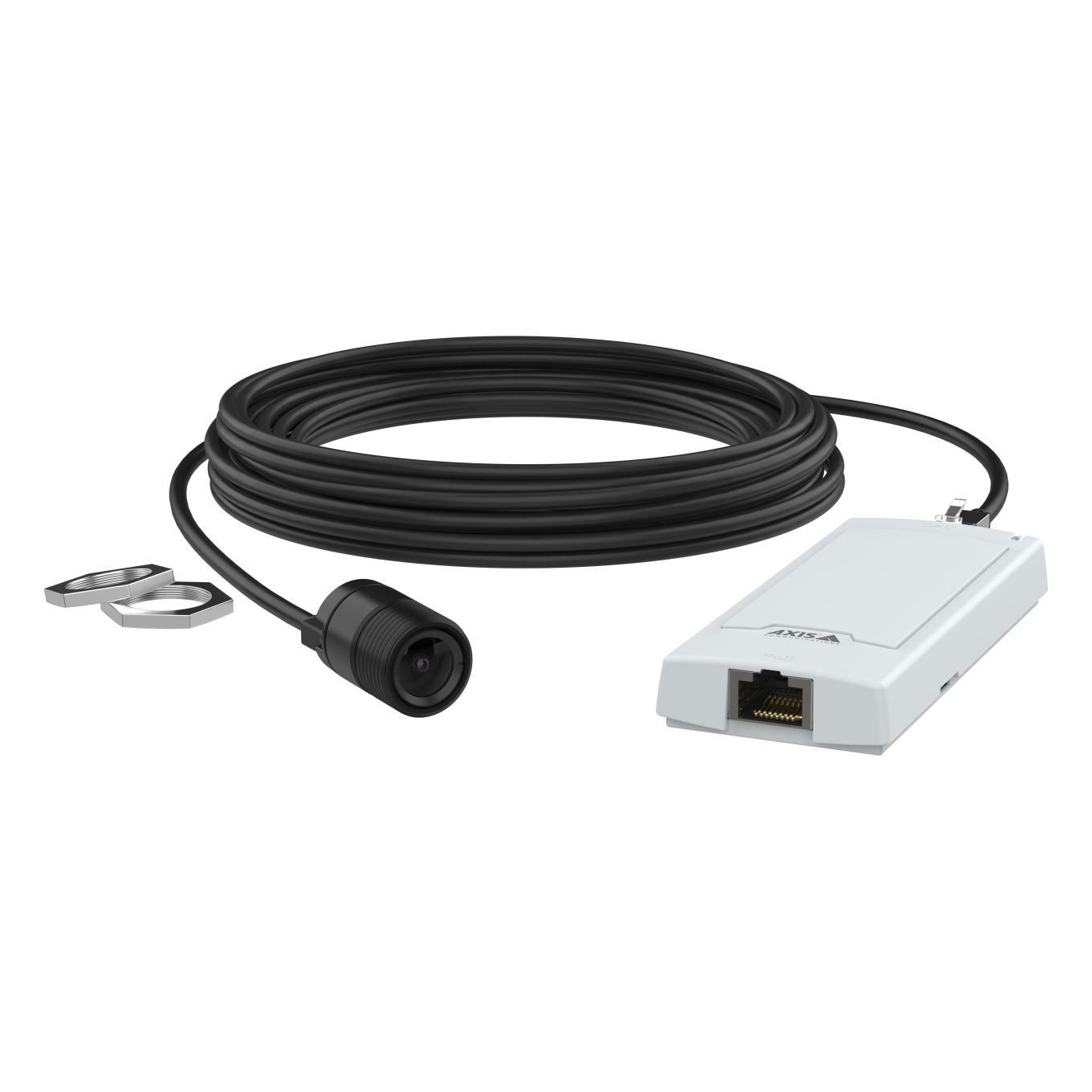

AXIS P1245 Mk II Modular Standard Camera
Ideal for mounting in tight spaces, AXIS P1245 Mk II features a small, thumb-sized sensor unit that’s easy to install and blends into any indoor environment. Featuring a deep learning processing unit, it enables the use of advanced analytics.
Compact and discreet
With a small, thumb-sized sensor unit, AXIS P1245 Mk II can be recessed mounted to blend into almost any indoor environment. The sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.
Highly flexible
Based on the divided modular camera concept, AXIS P1245 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won’t fit. Plus, it can be mounted on a bracket, swivel mount, or similar. And it’s easy to integrate with other devices. Including a standard sensor unit, this indoor camera suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade
Great image quality and support for advanced analytics
AXIS P1245 Mk II offers 1080p resolution with a wide, 111° field of view. Axis Zipstream significantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there’s both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. And, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy
- Small, thumb-sized sensor unit
- HDTV 1080p with 111° field of view
- Detachable cable up to 15 m
- Support for analytics with deep learning
- AXIS Object Analytics pre-installed
