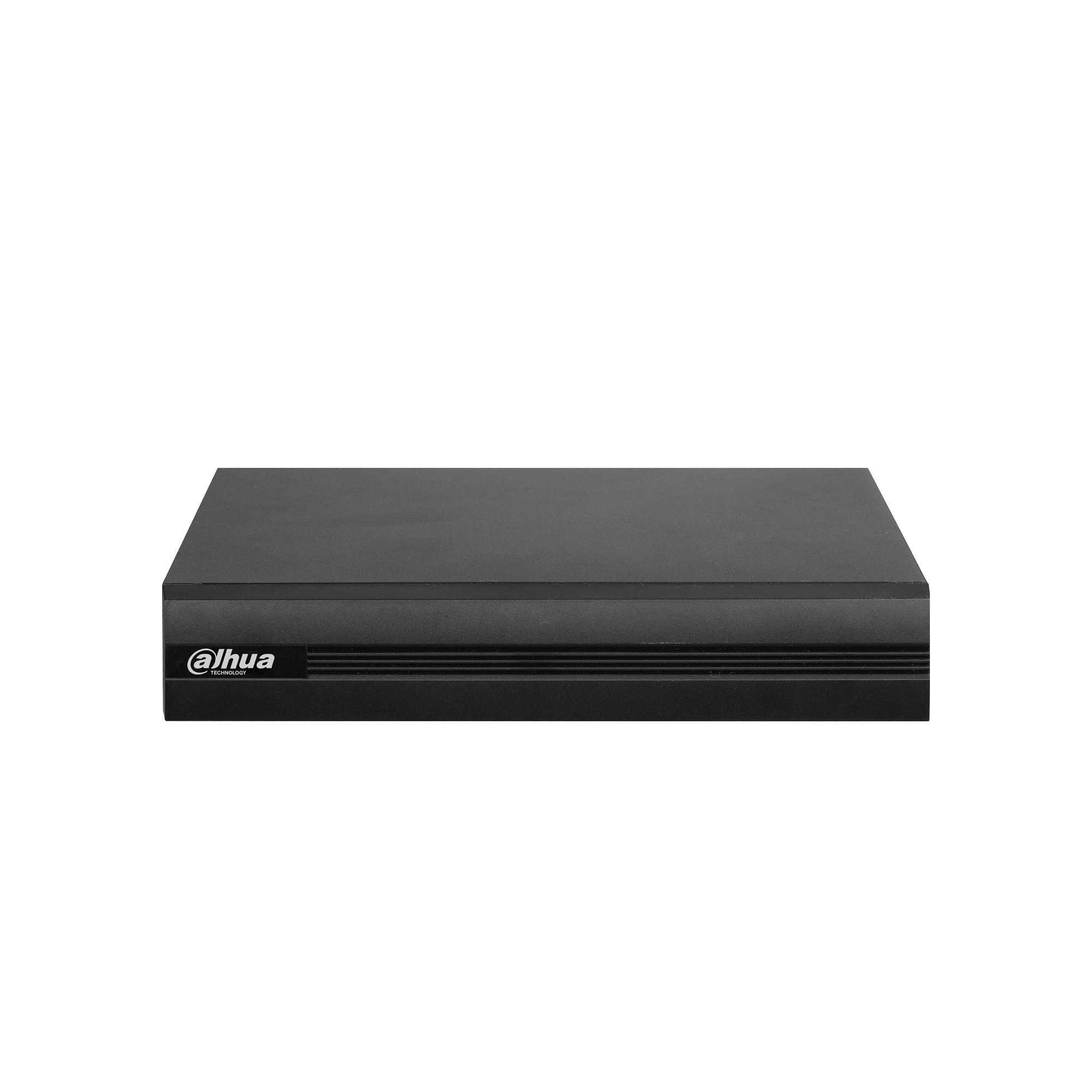

DVR 16CH HDCVI PENTABRID/XVR1B16-I DAHUA
ELKO kods
1405018
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, Cooper Series featuring SMD Plus to benefit customers from AI upgrade. The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
SMD Plus
SMD Plus, referred to as Smart Motion Detection Plus, which is an upgrading version of SMD that greatly improves the alarm accuracy by loading deep-learning algorithm. It analyzes person and vehicle shapes based on motion detection and send alarms only when person and vehicle intrudes.
*SMD Plus takes effect when SMD or IVS&SMD is selected in AI Mode.
AI Coding
Compared with H.265, AI codec can reduce up to 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details.
Smart H.265+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.
HDCVI/AHD/TVI/CVBS Auto-detect
The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.
High Definition Camera Input
The XVR supports up to 1080p HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p.
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, Cooper Series featuring SMD Plus to benefit customers from AI upgrade. The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
SMD Plus
SMD Plus, referred to as Smart Motion Detection Plus, which is an upgrading version of SMD that greatly improves the alarm accuracy by loading deep-learning algorithm. It analyzes person and vehicle shapes based on motion detection and send alarms only when person and vehicle intrudes.
*SMD Plus takes effect when SMD or IVS&SMD is selected in AI Mode.
AI Coding
Compared with H.265, AI codec can reduce up to 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details.
Smart H.265+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.
HDCVI/AHD/TVI/CVBS Auto-detect
The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.
High Definition Camera Input
The XVR supports up to 1080p HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p.
Tehniskā specifikācija
MasterImage
https://static.elko.cloud/ProductImages/59d10367-f66e-4b8e-9419-f7491726ecae.Jpeg
CnCode
85219000
Unit Calculated Weight
1.43
Unit Calculated Volume
0.008827
Shipping Box Width
8.5
Shipping Box Depth
33.5
Shipping Box Height
31
Shipping Box Weight
1.43
Units per Shipping Box
1
Operating temperature (T-T)
-10 - 45
Storage relative humidity (H-H)
0 - 90
Operating relative humidity (H-H)
10 - 90
Storage temperature (T-T)
-20 - 70
15pin D-sub
1
Width
260
Depth
231.4
Height
47.6
Weight
890
HDMI
1
DC voltage
12
Power consumption (typical)
10
Built-in processor
Y
Audio-In
1
Audio-Out
1
USB 2.0
2
Maximum video resolution
1920 x 1080
Video compression formats
H.264
Video compression formats
H.264+
Video compression formats
H.265
Video compression formats
H.265+
Video capturing speed
30
Product colour
Black
Analog signal format system
NTSC
Analog signal format system
PAL
Video streaming
Y
Bit rate
4096
Audio system
2-way
Rack capacity
1U
Audio formats supported
G.711
Audio formats supported
PCM
Video motion detection
Y
Playback resolutions supported
1920 × 1080, 1280 × 1024, 1280 × 720
Operating system installed
Embedded Linux
PTZ control
Y
Certification
FCC: 15 B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130;
EN 55024
UL: UL 60950-1
Number of HDDs supported
1
HDD interface
SATA
HDD interface
SATA II
HDD interface
SATA III
Maximum HDD capacity
6000
RJ45
1
Ethernet LAN
Y
Ethernet interface type
Fast Ethernet
Ethernet LAN (RJ-45) ports
1
Supported network protocols
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search
Number of users
128
BNC input ports
16
HDMI ports quantity
1
VGA (D-Sub) output ports
1
Audio input
1
Audio output
1
USB 2.0 ports quantity
2
Video input channels
16
Model
XVR1B16-I
