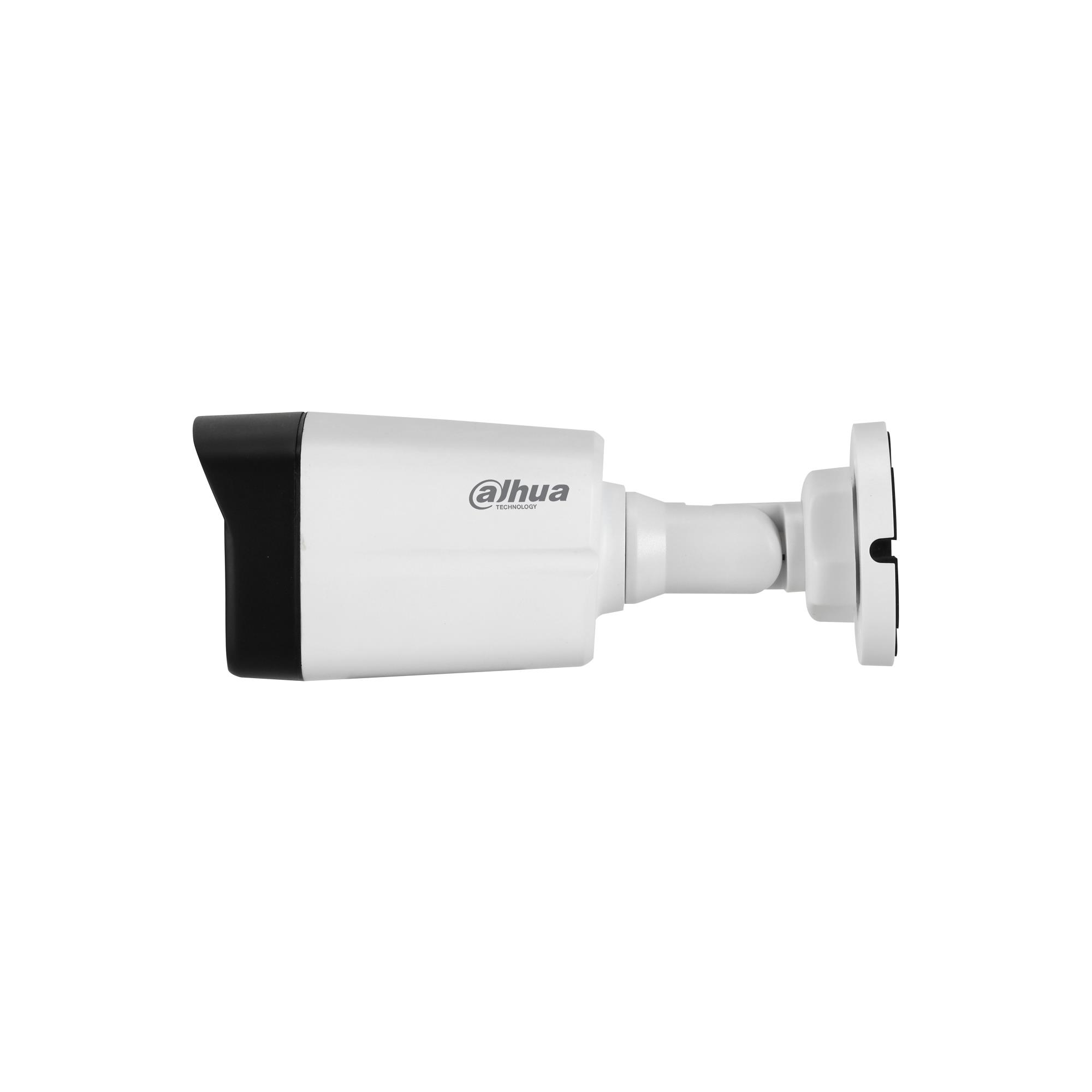

Dahua Technology Lite HAC-HFW1200TL-A. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.02 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 87.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 1920 x 1080 pixels. Fixed focal length: 3.6 mm
Tehniskā specifikācija
Performance
Certification
CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Connectivity technology
Wired
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Placement supported
Indoor & outdoor
Type
CCTV security camera
Wide Dynamic Range (WDR)
Yes
Design
Form factor
Bullet
Housing material
Metal/Plastic
International Protection (IP) code
IP67
Mounting type
Ceiling/wall
Product colour
Black/White
Camera
Angle of rotation
360 °
Camera pan control
Yes
Camera shutter speed
1/3 - 1/100000 s
Camera shutter type
Electronic
Camera tilt control
Yes
Lens viewing angle, horizontal
87.5 °
Minimum illumination
0.02 lx
Pan range
0 - 360 °
Tilt angle range
0 - 90 °
White balance
Auto/Manual
Image sensor
Number of effective pixels (H x V)
1920 x 1080 pixels
Number of sensors
1
Optical sensor size
1/2.7 "
Progressive scan
Yes
Sensor type
CMOS
Lens system
Fixed focal length
3.6 mm
Maximum aperture number
1.9
Number of lenses
1
Night vision
LED type
IR
Night vision
Yes
Night vision distance
80 m
Number of illumination LEDs
2
Video
Back Light Compensation (BLC)
Yes
Digital Wide Dynamic Range (DWDR)
Yes
Frame rate
30 fps
Highlight Compensation (HLC)
Yes
Maximum resolution
1920 x 1080 pixels
Noise reduction
Yes
Noise reduction technology
2D noise reduction
Privacy masking
Yes
Smart IR
Yes
Supported video modes
1080p/720p
Total megapixels
2 MP
Audio
Built-in microphone
Yes
Signal-to-Noise Ratio (SNR)
65 dB
Built-in HDD
No
Mirror
Yes
Power
DC output voltage
12
Power consumption (max)
4.9 W
Power source type
DC
Operational conditions
Operating relative humidity (H-H)
0 - 95 %
Operating temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
0 - 95 %
Storage temperature (T-T)
-40 - 60 °C
Weight & dimensions
Depth
198.9 mm
Height
80.2 mm
Weight
270 g
Width
76.2 mm
Package weight
400 g
Number of cameras
1
- Max 30fps@1080P
- HD and SD output switchable
- 3.6mm fixed lens (2.8mm, 6mm optional)
- Built-in mic
- Max. IR length 80m, Smart IR
- IP67, DC12V
