DETECTOR METHANE LNG/HY-GA40A DAHUA

ELKO kods
1391317
Dahua Technology HY-GA40A. Detected gas types: Methane, Best uses: Home, Detection distance: 1 m. Mounting type: Wall. Power source type: DC, Power consumption (max): 0.8 W. Width: 86.6 mm, Depth: 29.2 mm, Height: 86.6 mm. Quantity per pack: 1 pc(s)
Atvērt Ecom Kļūt par partneri
Tehniskā specifikācija
Model
HY-GA40A
Model name
HY-GA40A
Features
Detected gas types
Methane
Interconnectable
Yes
Best uses
Home
Detection distance
1 m
Accuracy
10 %
Alarm decibels
70 dB
Design
Built-in display
No
Mounting type
Wall
Power
Power source type
DC
Power consumption (max)
0.8 W
Operational conditions
Operating relative humidity (H-H)
0 - 95 %
Operating temperature (T-T)
-10 - 55 °C
Weight & dimensions
Width
86.6 mm
Depth
29.2 mm
Height
86.6 mm
Quantity per pack
1 pc(s)
Sustainability
Compliance certificates
CE
Sustainability compliance
Yes
ELKO Logistics Data
Product Net Weight
0.08 kg
Unit Width
14 cm
Unit Depth
18 cm
Unit Height
5.5 cm
ELKO Internal Logistics Data
Shipping Box Weight
0.28 kg
Shipping Box Height
5.5 cm
Shipping Box Depth
18 cm
Shipping Box Width
14 cm

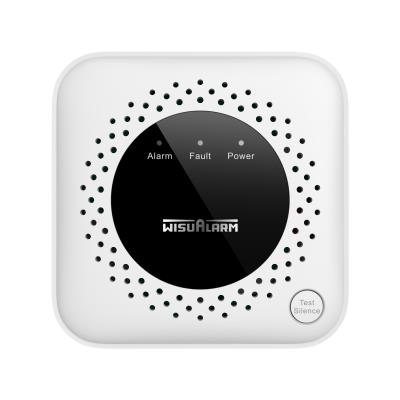

DHI-HY-GA40A Gas Alarm is designed to continuously monitor methane concentration. Adopting a catalytic-type gas sensor, advanced electrical echnology, MCU, a built-in high-volume buzzer, it responds quickly and becomes highly sensitive with stable performance and low false
alarm. Once the surrounding methane concentration reaches the alarm threshold, it will promptly send out visual and audible alarm signal to remind the user to take immediate measures. The exhausting fan can be linked to the relay output port to send out combustible gas. The Device
can also close the pipeline valve to cut off the gas source.

Precise detection
A catalytic-type gas sensor is used for precise detection, stable performance and long-term operation. Alarm Threshold is 10% LEL.
Intelligent linkage
After alarm, it can automatically close the valve or turn on the exhausting fan, and address the leakage in time.
Multidimensional detection
It can detect the gas concentration and environment temperature.

Application scenarios include homes, restaurants, hotels and other places that require methane detection.

  • High-performance sensor, intelligent and accurate detection of gas leakage, and send out alarm signal timely
  • Operate stably and identify gas type effectively
  • Intelligent linkage to close pipeline valve and start exhausting fan
  • A built-in high-volume buzzer, 70dB (A) at 1m (3.28 feet)
  • Three indicator lights for displaying device status clearly
