ELKO kods
1304613

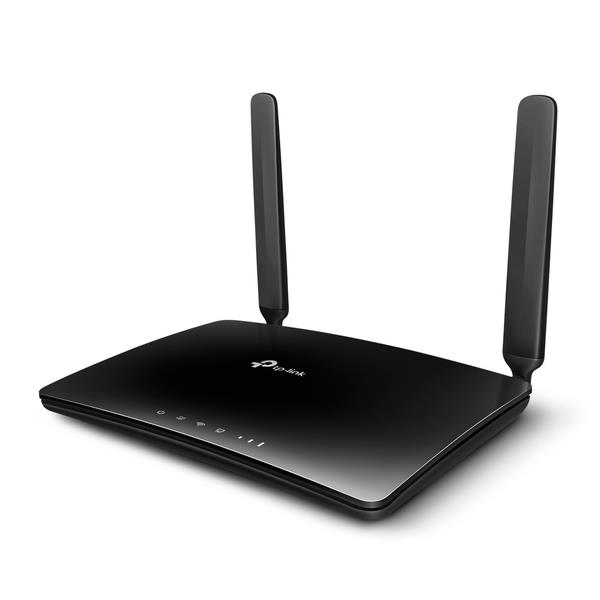

TP-Link TL-MR150. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: DC-HSPA+, HSPA, HSPA+, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Tehniskā specifikācija
Model name
TL-MR150
Wireless LAN features
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
Wi-Fi band
Single-band (2.4 GHz)
Wi-Fi standards
802.11b/802.11g/Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)
300 Mbit/s
WAN connection
3G/4G USB modem compatibility
Yes
DSL WAN
Yes
Ethernet WAN
Yes
SIM card slot
Yes
WAN connection type
RJ-45
Network
Cabling technology
10/100Base-T(X)
Dynamic DNS (DDNS)
Yes
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)
20 dBmW
Ethernet LAN
Yes
Ethernet LAN data rates
10/100 Mbit/s
Ethernet LAN interface type
Fast Ethernet
Networking standards
IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
Receiver sensitivity
11g 54M: -74dBm
11n HT20: -71dBm
11n HT40: -67dBm
VPN Passthrough
Yes
VPN support
PPTP, L2TP, IPSec
Mobile network
3G
Yes
3G bands supported
2100/900 MHz
3G standards
DC-HSPA+/HSPA/HSPA+/UMTS
4G
Yes
4G bands supported
1800/1900/2100/2300/2500/2600/800/900 MHz
4G standard
LTE-TDD & LTE-FDD
Mobile network generation
4G
Ports & interfaces
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
4
Memory card slot(s)
No
USB port
No
Management features
Quality of Service (QoS) support
Yes
Reset button
Yes
WPS push button
Yes
Security
Access Control List (ACL)
Yes
DMZ support
Yes
DoS attack prevention
Yes
Firewall
Yes
Guest access
Yes
IP address filtering
Yes
MAC address filtering
Yes
Security algorithms
128-bit WEP/64-bit WEP/WPA/WPA2/WPA2-PSK/WPA-PSK
Stateful Packet Inspection (SPI)
Yes
Protocols
DHCP client
Yes
DHCP server
Yes
Supported network protocols
IPv4, IPv6
Universal Plug and Play (UPnP)
Yes
Design
On/off switch
Yes
Product colour
Black
Product type
Tabletop router
Packaging content
AC adapter included
Yes
Cables included
LAN (RJ-45)
Quick installation guide
Yes
Certification
CE, RoHS
Antenna
Antenna connector type
N-type
Antenna design
External
Antennas quantity
2
Power
Output current
0.85 A
Output voltage
9 V
Power source type
DC
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 °C
System requirements
Browser supported
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Windows operating systems supported
Windows 2000/Windows 7/Windows 8/Windows 8.1/Windows 98SE/Windows NT/Windows Vista/Windows XP
Weight & dimensions
Depth
141 mm
Height
33.6 mm
Width
202 mm
Package type
Box
Product Net Weight
0.4 kg
ELKO Internal Logistics Data
Shipping Box Depth
47 cm
Shipping Box Height
38 cm
Shipping Box Weight
6.9 kg
Shipping Box Width
33 cm
Superfast 4G LTE Speed for Reliable Wi-Fi
The TL-MR150 uses 4G LTE technology to achieve speeds of up to 150Mbps download and 50Mbps upload. It also shares a Wi-Fi network with maximum speed of 300Mbps on 2.4GHz for gaming, streaming, and more.
Design for Maximum Network Coverage
Advanced LTE antennas make efficient and stable connections to every device. Power Amplifier and Low Noise Amplifier boost sending and receiving capabilities, creating a wide-coverage Wi-Fi network for your home.
Plug and Play with a Micro SIM Card
Simply insert your 3G/4G Micro SIM card into the built-in slot, turn on the TL-MR150 and start surfing!
Available WAN Connection Backup
With a fully functional WAN/LAN port, TL-MR150 can work as a router which is compatible with cable, fiber, and DSL modems.
