ELKO kods
1286673
Satel SLIM-PIR-LUNA-PET. Mounting type: Wall, Placement: Indoor, Outdoor, Product colour: White. Sensor type: Passive infrared (PIR) sensor, Connectivity technology: Wired, Detection distance: 13 m. Power source type: AC, Power consumption: 97 mA, Standby current: 13 mA. Width: 62 mm, Depth: 42 mm, Height: 137 mm
Atvērt Ecom Kļūt par partneri
Tehniskā specifikācija
Model name
SLIM-PIR-LUNA-PET
Security
Connectivity technology
Wired
Detection distance
13 m
Pet immunity (max)
20 kg
Sensor type
Passive infrared (PIR) sensor
Features
Certification
EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5
Installation height (max)
2.4 m
LED indicators
Yes
Mounting type
Wall
Placement
Indoor,Outdoor
Product colour
White
Protection class
II
Response time
2 s
Power
Power consumption
97 mA
Power source type
AC
Standby current
13 mA
Operational conditions
Operating relative humidity (H-H)
0 - 93 %
Operating temperature (T-T)
-10 - 55 °C
Weight & dimensions
Depth
42 mm
Height
137 mm
Weight
142 g
Width
62 mm
Product Net Weight
0.142 kg
ELKO Internal Logistics Data
Shipping Box Depth
14.7 cm
Shipping Box Height
5.5 cm
Shipping Box Weight
0.15 kg
Shipping Box Width
6.7 cm

SLIM-PIR-LUNA-PET detects motion in the protected area. Additionally, the detector has a set of LEDs to implement the lighting feature.

  • certificate of compliance with the EN 50131 requirements for Grade 2
  • motion detection using passive infrared (PIR) sensor
  • adjustable sensitivity of detection
  • digital motion detection algorithm
  • digital temperature compensation
  • wide-angle lens, designed specifically for SLIM LINE detectors
  • pet immunity up to 20 kg
  • ability to configure detector operating parameters using the OPT-1 keyfob
  • built-in end-of-line resistors (2EOL: 2 x 1,1 kΩ / 2 x 4,7 kΩ / 2 x 5,6 kΩ)
  • lighting feature implemented with white LEDs
  • remote lighting control or motion activated lighting capability
  • LED indicator

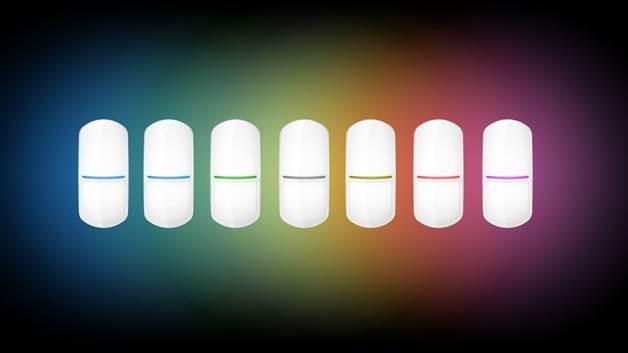

  • selectable color of the LED indicator (7 colors available)
  • LED indicator remote enable/disable
  • remote switching between two levels of PIR sensor sensitivity
  • configuration mode remote enable/disable
  • supervision of motion detection and supply voltage circuit
  • tamper protection against opening of enclosure and removal from mounting
