SERVER MB C621 S3647 EEB/WS C621E SAGE ASUS
-
ELKO kods1278062

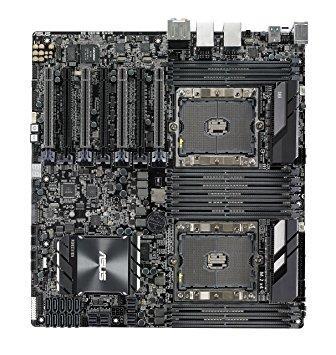

Intel® C621 motherboard with quad-strength graphics support and 12 DDR4 memory slots
- Designed for Dual 7th generation LGA2066 socket Intel® Xeon® W-Series processors with quad U.2, M.2, USB 3.1 Gen2, Dual Intel® Gigabit LAN, support for 12 DIMMs of ECC DDR4, Thunderbolt EX3, Intel® VROC and Intel® Optane™ Memory compatibility
- Winner of 18 #1 Benchmark World Records by the Standard Performance Evaluation Corporation (SPEC)
- 2-Way Overclocking Performance unlocks the full power of the dual Xeon® processors
- Next-gen transfer speeds with up to 32Gbps M.2 and U.2, plus up to 10Gbps USB 3.1 Type-A and Type-C connections
- Industry-leading 7.1-channel HD audio enhanced by ASUS exclusive Realtek S1220A featuring DTS Headphone:X and driven by Japanese capacitors for warm, immersive sound
- Patent-pending SafeSlot features an injection molding process that integrates metal framing for stronger, firmly anchored PCIe slots built for heavyweight GPUs, ideal for supporting 4-Way NVIDIA® SLI® or AMD® CrossfireX™
- Complete IT Infrastructure Management with ASMB9 Out-of-band remote management and In-band ASUS Control Center providing a complete server management solution reducing IT operating costs with features like remote BIOS updating, monitoring multiple systems via mobile device, and one-click software updates/dispatching.
Tehniskā specifikācija
-
Unit Gross Weight3.73kg
-
Unit Net Weight2.12kg
-
Shipping box quantity1
-
ChipsetIntel C621
-
Form FactorSSI EEB
-
Integrated audioYes
-
Integrated LANYes
-
Memory slots12
-
RAIDSATA 0, 1, 5, 10
-
USB 2.02
-
PS/21
-
Optical S/PDIF1
-
USB 2.0Yes
-
RJ452
-
Unit Brutto Volume0.0157096cubm
-
Audio port5
-
SATA 3.0Yes
-
PCI-Express 3.0 16x7
-
Shipping Box Width10.3cm
-
Shipping Box Depth41cm
-
Shipping Box Height37.2cm
-
Shipping Box Weight3.73kg
-
Memory typeDDR4
-
Frequency speed2666MHz
-
Frequency speed2400MHz
-
Frequency speed2933MHz
-
SocketS3647
-
M.21
-
USB 3.15
-
USB-C1
-
USB 3.1Yes
-
U.24
-
CnCode84733020
