KEYPAD LCD SENSORIC/INTEGRA INT-KSG2R-B SATEL
ELKO kods
1413042
INT-KSG2R-B

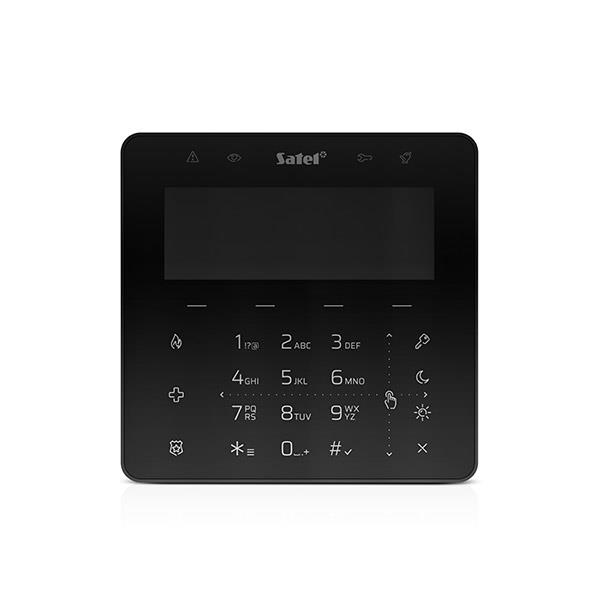

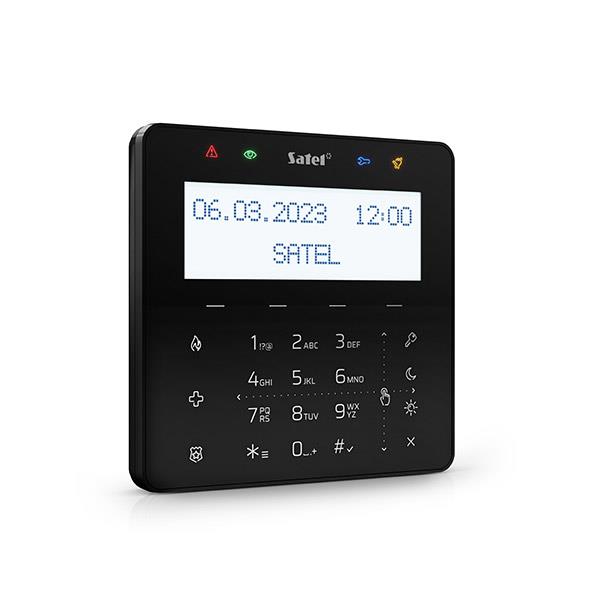

Keypad with touch keys
The INT-KSG2R keypad with touch keys is designed for operating and programming the INTEGRA and INTEGRA Plus series control panels, as well as the PERFECTA 64 M control panel.
It is a device intended for those who appreciate attractive design, while at the same time wish to operate the alarm system and building automation components in the manner known from traditional keypads.
Keypad with touch keys
The INT-KSG2R keypad with touch keys is designed for operating and programming the INTEGRA and INTEGRA Plus series control panels, as well as the PERFECTA 64 M control panel.
It is a device intended for those who appreciate attractive design, while at the same time wish to operate the alarm system and building automation components in the manner known from traditional keypads.
- compatible with INTEGRA and INTEGRA Plus series control panels (INTEGRA Firmware 1.21 or higher) and PERFECTA 64 M control panel
- large backlit graphic display
- configurable screensaver with optional display of the clock, date, status of system components (partitions, zones, outputs), temperatures
- backlit touch keypad:
- 12 keys, marked according to the telephone standard, for data input
- 4 function keys (INTEGRA: preset function selection; PERFECTA 64 M: arming in various modes/disarming)
- 3 alarm-triggering keys (FIRE / AUX / PANIC)
- 4 keys for activating macro-commands
- support for swipe gestures (navigation across the menu)
- control of the system using macro-commands activating various function in the control panel (including building automation)
- built-in MIFARE proximity card reader (controlled by INTEGRA and INTEGRA Plus control panels) – for future applications
- LEDs for signalling the current status of the system
- built-in piezo transducer for acoustic signalling
- 2 programmable wired zones (supported by control panels INTEGRA and INTEGRA Plus only):
- support for NO and NC type detectors, and roller shutter and vibration detectors
- support for the EOL, 2EOL and 3EOL configurations (3EOL in the case of INTEGRA Plus)
- programmable values of EOL resistors
- option to connect to RS-485 bus (software update over the bus)
- tamper contact responding to the enclosure opening or detaching from the wall
Tehniskā specifikācija
MasterImage
https://static.elko.cloud/ProductImages/78171961-0688-4c29-bb54-d26312819f1f.Jpeg
CnCode
85311030
Colour
Black
Dimensions
132 x 129 x 17 mm
Units per Shipping Box
1
Shipping Box Width
16
Shipping Box Depth
18.5
Shipping Box Height
4
Shipping Box Weight
0.34
Unit Calculated Volume
0.001184
Product Net Weight
0.224
Unit Calculated Weight
0.34
