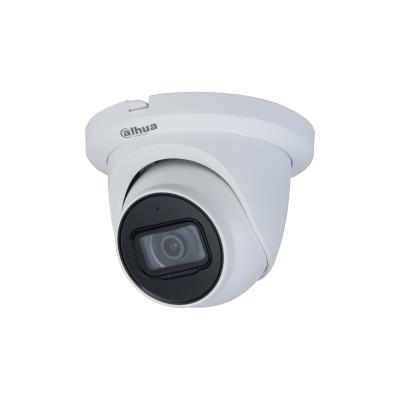

CAMERA HDCVI 2MP IR EYEBALL/HAC-HDW1231TMQ-A-0280B DAHUA
ELKO kods
1371359
Dahua Technology Lite HAC-HDW1231TMQ-A. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.002 lx, Angle of rotation: 360°, Tilt angle range: 0 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 82.8 m, Observe distance: 33.1 m, Recognize distance: 16.6 m
Tehniskā specifikācija
Performance
Type
CCTV security camera
Connectivity technology
Wired
Placement supported
Indoor & outdoor
Wide Dynamic Range (WDR)
Yes
Certification
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Design
Form factor
Dome
Mounting type
Ceiling/wall
Product colour
White
Housing material
Metal/Plastic
International Protection (IP) code
IP67
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0.002 lx
Angle of rotation
360 °
Tilt angle range
0 - 90 °
Pan range
0 - 360 °
White balance
Auto/Manual
Camera shutter type
Electronic
Camera shutter speed
PAL: 1/25 s-1/100,000 s/PAL: 1/25 s-1/100,000 s s
Adjustment shutter speed
Auto/Manual
Image sensor
Optical sensor size
1/2.8 "
Progressive scan
Yes
Sensor type
CMOS
Lens system
Number of lenses
1
Detect distance
82.8 m
Observe distance
33.1 m
Recognize distance
16.6 m
Focal length range
2.8 - 3.6 - 6 mm
Identify distance
8.3 m
Maximum aperture number
1.6
Night vision
Night vision
Yes
Night vision distance
60 m
LED type
IR
Number of illumination LEDs
2
Video
Maximum resolution
1920 x 1080 pixels
Total megapixels
2 MP
Supported graphics resolutions
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)
Supported video modes
1080p/720p
Frame rate
30 fps
Analog signal format system
PAL
Noise reduction
Yes
Noise reduction technology
3D noise reduction
Back Light Compensation (BLC)
Yes
Highlight Compensation (HLC)
Yes
Privacy masking
Yes
Smart IR
Yes
Audio
Audio input channels
1.0 channels
Signal-to-Noise Ratio (SNR)
65 dB
Network
Ethernet LAN
No
Wi-Fi
No
Bluetooth
No
Built-in HDD
No
BNC output ports
1
Mirror
Yes
Power
Power source type
DC
DC output voltage
12
Operational conditions
Operating temperature (T-T)
-40 - 60 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
0 - 95 %
Storage relative humidity (H-H)
0 - 95 %
Weight & dimensions
Height
99.1 mm
Diameter
121.9 mm
Weight
420 g
Package weight
620 g
Number of cameras
1
ELKO Verified Logistics Data
Product Net Weight
0.17 kg
Unit Width
14 cm
Unit Depth
15 cm
Unit Height
13.5 cm
ELKO Internal Logistics Data
Shipping Box Weight
0.62 kg
Shipping Box Height
13.5 cm
Shipping Box Depth
15 cm
Shipping Box Width
14 cm
- Max 30 fps@1080p
- Starlight, 130 dB true WDR, 3D NR
- 3.6 mm fixed lens (2.8 mm, 6 mm optional)
- CVI/CVBS/AHD/TVI switchable
- Super Adapt
- Built-in mic
- Max. IR length 60 m, Smart IR
- IP67, DC 12 V
- Quick-to-install saves installation time
